bei Twin-Chamber Gabeln ist die Druckstufe im Gegensatz zu normalen Cartridge Gabeln oben!
on Twin-Chamber forks the compression damping clickers are on top!

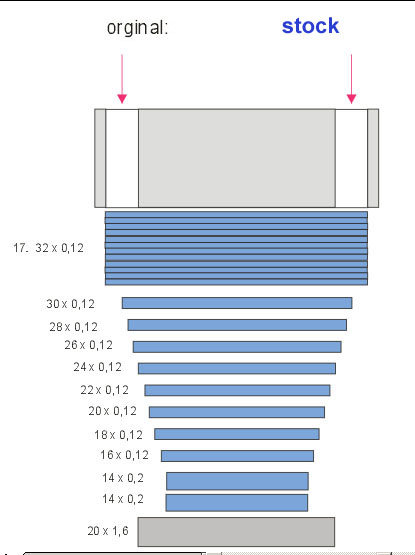

Anordnung der Druckstufenshims base valve shim stack (compression damping)



I am working on a high speed blow off circuit. I hope I can publish this soon

How to change the fork springs:

1. open the top cap (49mm wrench) and let the oil flow out.
2. close the top cap and open the 17mm bolt at the bottom of the fork.
3. stand the fork with the top cap to the ground and compress it about 4 inches until you can see the damper rod
4. now you need a tool to hold the rod - I use a long fork with 13mm distance between the two fork legs
5. remove the bottom bolt with a 17mm wrench and a 15mm wrench
6. remove the long fork tool while compressing the KYB fork
7. open the top cap again, now you can seperate the damping unit and pull out the springs
